Selling: |

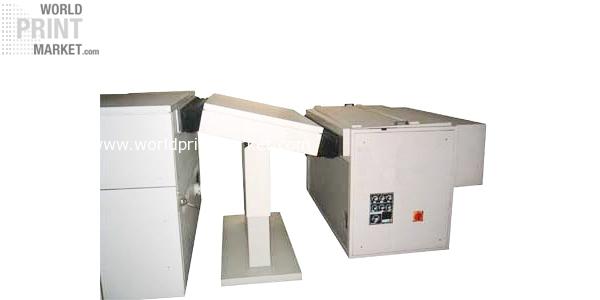

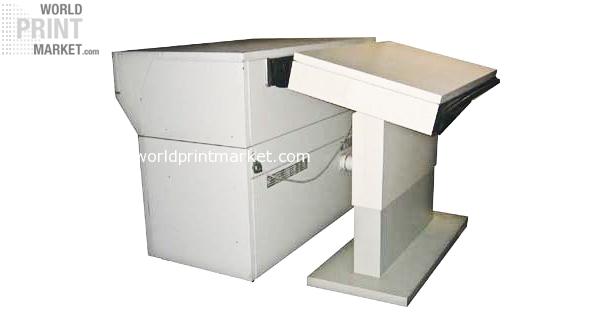

Linotype Hell R3030PS A1 8 Up |
|||
|
||||
|
||||
ID | 1018 | |||
Categories | CTF-Systems | | |||
|
||||
Short description | Linotype Hell R3030PS A1 8 Up | |||
Price (in €) | on request | |||
|
||||
Manufacturer | Linotype Hell | |||
Model | --- | |||
Year of manufacture | 0000 | |||
Warranty until | keine / Nicht-Neu Verkauf | |||
|
||||
Long description | Linotype bright R3030PS Including: spare laser Non new Mass of bridge 1.1 m deep x 1.4 m wide x 1.24 m high Mass of E machine 1.08 m high x 1.16 m deep x 1.6 m wide Mass exposure unit 1,815 broadly x 0.95 broadly x 1,340 high Bright (Linotype bright) R3030 Exposure principle outside drum principle Parallel recording from up to 8 Scanlienien Source of light argon ion laser, issue 488 nm Scan line length 770 mm (outside extent of the drum) In 1219, in 1372, in 2184, in 2438, in 3251, in 3658, in 4876 dpi (R3030) Exposure speed 9.73 cm / min. with 2540 dpi Max Gripfrequenz with film exposure to 160 l / cm (406 lpi) R3030 repeatability approx. 5μm with full format Issue variations positively, negatively, side properly, side wrong, duplo, duplicate duplo and quadro about EXT. Materials in roles of film 0.10 Mm strongly, 488 nm Capacity of the givers cassette max. 60 m with 0.10 mm material Max photo. exposure format 750 x 1100 mm (29.5 x 43.3 inch) Material widths film 550 + 1118 mm (21.6 +44 inch) Segment lengths 400, 465, 500, 545, 600, 660, 720, 763 mm Mass (B xH x T) in 1815 x in 1340 x 1100 mm (71.5 x 52.6 x 43.3 inch) Weight approx. 1100 kg |
|||
|
||||
Weight | --- | |||
Dimensions (LxWxH) | x x  | |||
|
||||
Location | Germany | |||
Region | NRW | |||
|
||||
|
||||
