Buying: |
x/y Messtisch SpectroMat |
|||
|
|
||||
|
|
||||
| ID | 1749 | |||
| Categories | Measuring Devices | | |||
|
|
||||
| Short description | x/y Messtisch SpectroMat | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | X Rite+GretagMacbeth | |||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | --- | |||
|
|
||||

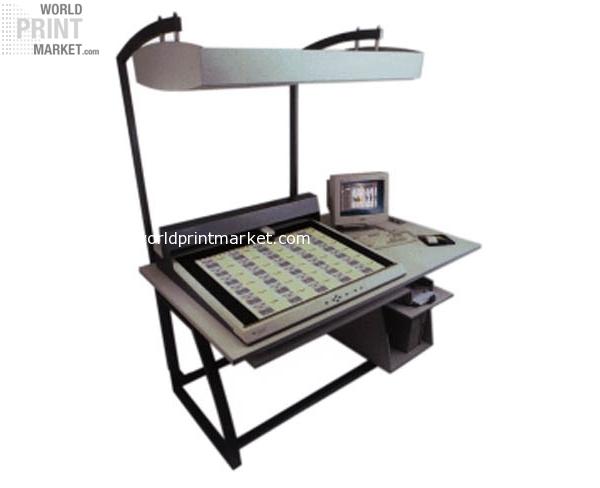

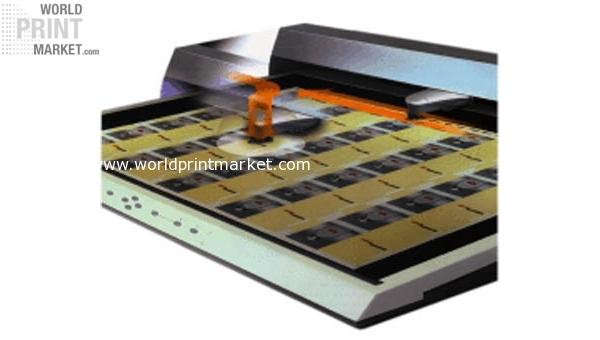

| Long description | x/Y measuring table SpectroMat The x/Y measuring table SpectroMat allows the automatic spectral colour measurement on the complete pressure curve. He grasps colour values and thick values on a surface from up to 1040 mm x 750 mm and passes on them to the connected software for the processing. Measure out from pressure curves up to the format 1040 x 750 mm Spectral measurement at any places of the curve Scan from measuring stripe for 4 , 6 , 8 colour machines Evaluation and announcement of tax dimensions for the pressure machine Automatic scanning of big test charts Reliable high class control according to ISO 9000 directives Measuring technology: Spectral measurement holografisches declension grid Spectral range from 380nm to 730nm Physical resolution 10nm Measuring modes Remission Remission: Measuring geometry 45 °/0 ° ring optics, German Institute for Standardization 5033 Measuring screen Ø 4.5 mm Source of light Wolfram, gas filled, light kind A Physical filtering No (neutrally, approximated electric light bulb light A) Measuring time No filter: approx. 1see Measuring speed in the scanning fashion approx. 35 mm / see Measuring area density to German Institute for Standardization 16536: From 0.00D to 2.5D Remission: 380 480, 650 730nm: 0... 200% 480 520, 600 650nm: 0... 150% 520 600nm: 0... 120% Device correspondence typically 0.3 deltas E*CIELab (D50, 2 °), on average more than 12 tiles BCRA, maximum 0.8 deltas E*CIELab (D50, 2 °) more than 12 tiles BCRA Short term ability for reproduction 0.03 deltas E* CIELab (D50, 2 °), average from 10 measurements in the distance of 10 seconds on white Density ability for reproduction thick German Institute for Standardization 16536 (ability for reproduction ±0,01D): No filter 0.0D 2.2D, Yellow 0.0D 1.8D Pole filter 0.0D 2.2D, Yellow 0.0D 1.5D Colour systems CIE L*a*b *, CIE L*C*h * (a*b *), delta E CIELAB, CIE XYZ, CIE xyY, CIE L*u*v *, CIE L*C*h * (u*v *), LABmg, LCHmg, Hunter Lab Light kinds of the colour metrics D50, D65, A, C, D30... D300, F1... F12 Observers corner 2 °, 10 ° Densitometrie German Institute for Standardization 16536, German Institute for Standardization 16536 NB, STATUS ANSI A, STATUS ANSI T White relation absolutely, relatively Interfaces: Data socket mini dinar socket and D Sub, USB serial interface RS 232C with from 110 to 57600 Baud, interface USB Electricity supply: Electricity supply about data cable and provided mains appliance Mains appliance specification 90 VAC to 270 VAC, 47 hertz to 63 hertz Mechanical data: Dimensions depth: 1005 mm, width: 1126 mm, height: 325 mm Measuring surface Max: 1040x750mm Positioniergenauigkeit ± 0.3 mm Weight 66 kg Rental: You may also rent this article for a limited time. Please request an offer. This possibility exists only for companies with good credit ratings. Spare Parts: As certified matchpart GmbH (Germany) Distributor we provide spare Parts. Repair: Our Partner matchpart GmbH (Germany) offers circuit board repair service. If you are interested for a product you already own, we need serial number, YOM, sparepartnumber and type of error. Service Training: A Service Technician Training is available on request by matchpart GmbH (Germany). This training is neccessary if you want to install certified matchpart parts in exchange with warranty. Recertification: Brakensiek Systemhaus GmbH & Co. KG is ISO 9001 certified for the service of recertification. Please contact us for a quote if you need a recertification. Manuals: The manual will be send as PDF and the original one will be shipped at additional cost. Information for buyers: This machine is sold. You find other machines on our website. Please use the search button on our website. Our offers are changing daily. Purchase and Dismantling: Our partner Systembau Dortmund GmbH & Co. KG can dismantle the goods and transport them to us. They are specialists in that and have own all risk insurrance. Please offer us your surplus equipment for purchase. We deliver Spareparts as Exchange Part: We need the old broken part back, bevore we can ship the new part. Remote Kit: If you buy a remote kit from us, we can help you diagnosing Errors. You can buy sets of 3 working hours in advance. Wearing Parts: During repair, wearing parts can be replaced preventively. |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
