Selling: |

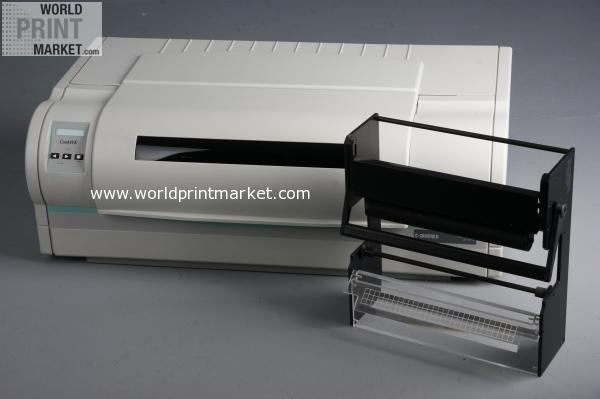

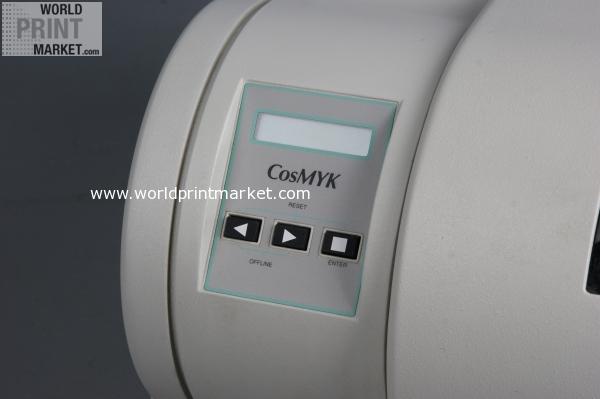

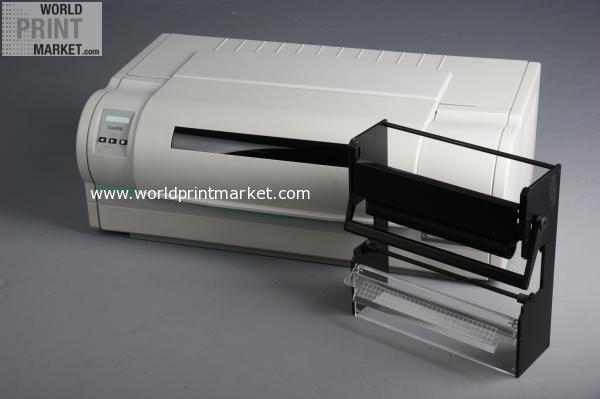

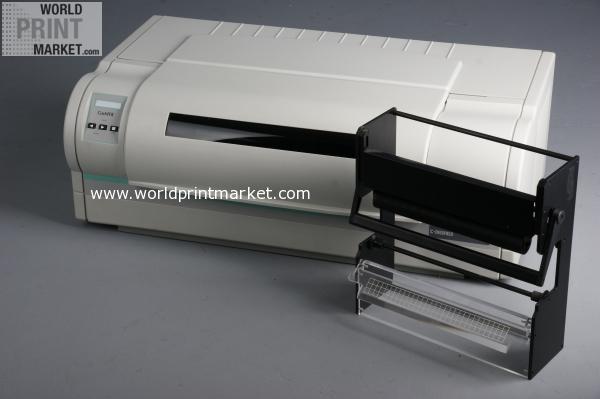

Howtek Drumscanner Fuji Celsis 240 CosMYK |
|||
|
|
||||
|
|
||||
| ID | 2305 | |||
| Categories | Drum Scanners | | |||
|
|
||||
| Short description | Howtek Drumscanner Fuji Celsis 240 CosMYK | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | Crossfield | |||
| Model | --- | |||
| Year of manufacture | 0000 | |||
| Warranty until | keine | |||
|
|
||||

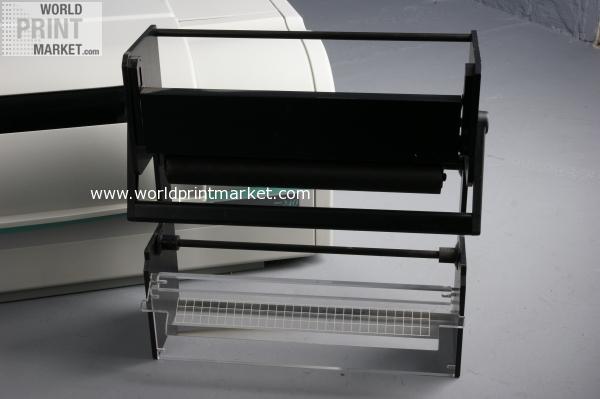

| Long description | Howtek ScanMaster 4000 02 Crosfield Celsis 240 CosMYK Drumscanner/Howtek Colormax D5404 Non New with a drum and assembly station Price including SilverFast AI. When ordering please specify which version you want. At SilverFast AI the device is detected as Howtek Colormax D5404 CMYK . According to the excerpt of "prepress" 11/1994, page 16 Fast A4 drum scanner A new drum scanner in the A4 range comes from Opto Trade in Penzberg: The Colormax D5404 is the successor of the successful Colormax D4000 and offers a scanning surface of A4 with the same resolution as before (4000 dpi), but much higher speed. Available is the Colormax D5404, equipped with three photomultiplier tubes, in an RGB and a CMYK version, and it can optionally be controlled using Photoshop plug in, TWAIN interface or the multitasking scanning Aurora (for Mac or PC) . The design was adapted to the larger model D7502 with A2 flatbed. A4 drum scanner for high end quality With the 240 Celsis table drum scanner Crosfield offers the manufacturerscolor reproduction in high end quality at the desktop publishing work. The A4 end drum scanner works with the photomultiplier technique, so that oversight and transparencies can be handled positively and negatively. The device has a standardly SCSI II interface and can be used by the Macintosh as well as be controlled by a PC. . The scanner optics enable to the users to process pictures with resolutions between 31 and 4,000 dpi and a whole side can be felt in the format DIN A4 at most with an enlargement of 2,400 percent. The scanner works with a fully automatic calibration and for this on the roller a white stripe is raised and an examination surface is kept. Here in contrast to other comparable scanners the calibration stripes are raised by the manufacturer firmly on the roller, so that the user must not always fasten them again anew. Beside the automatic calibration an automatic Focus and screens setting as well as the possibility of the batch processing should guarantee a high productiveness. In addition, offers of the Celsis 240 a blurred masking, and also the change from RGB in the colour space CMYK can occur directly during the Scannens automatically. The Celsis 240 offers a special possibility to control the picture sharpness optically. Over a special view window above the drum the operator can have a look at the picture sharpness directly and change about the set keys of the scanner. This function is very helpful, for example, if it is a matter of processing printed in halftone presentations and the user direct can see with which unsharpness the single half tone dots just just disappear. Description of the Howtek D4500 (it does not concern a Howtek D4500): The Howtek ScanMaster D4500 delivers unbeatable image quality and productivity. If youve been looking at CCD film scanners that use flatbeds or film carriers, then you should consider a PMT drum scanner. Its more accurate than flatbed scanners, and more productive than scanners that can only scan single or small batches of films. You can scan any size film or reflective up to A4, and even mix different film types and sizes in a single batch scan. The D4500 can scan positive or negative, transparency or reflectives. 16,000 DPI (4,000 DPI Optical) Scanner Type: Drum Enlarge up to 1777% at scantime 300 1,200 rpm Variable Drum Speed 48 Bit Color 4.2 Dynamic Range Scans up to 11" x 11.8" Films SCSI Interface Supports Mac, Windows9x/NT, and Unix User removable dual tungsten light source Technical data: Scanning area: Full A4 size; 11.0" x 11.8"; 27.94cm x 29.97cm Original type: reflective or transparent; positive or negative Media carrier: removable drum Resolution: 32 to 4,000 dpi Optical density: 0 3.8 A/D conversion: 12 bits per color; 4096 levels of gray Color separation: three matched PMT sensors (red, green, blue) Item Information: Manufacturer: Crosfield/Howtek Model: Celsis 240 Item Condition: Good condition, turns on and says "Ready to Scan", machine scans with Silverfast Also Includes: Silverfast AI Howtek D5404 Demo Version. Item Specs: Scanning: Spatial Resolution User selectable from 31 to 4000 dpi A/D Conversion 12 bits per colour; 4096 levels of gray Data Conversion Linear & Logarithmic Drum Speed 300 to 1200 rpm Effect Scanning Area 11.0" x 11.8 Image Types Reflective and transparent copy (positive & negative) Scanning Modes Color or grey scale (8 or 12 valid bits per pixel, giving 256 or 4096 colors or levels of gray) and binary (for line art or halftone) Field Stops (Aperture) Twelve total Physical: Dimensions Width: 38.0" Height: 13.5" Depth: 20.5" Weight: 135 lbs. Scanner Type Interchangeable drum, photomultiplier tubes (PMT): RGB, CMYK, greyscale, and black and white scanning system Light Source Two tungsten halogen reflector lamps Colour Seperation Three PMT sensors (red, green, blue) with dichroic beam splitters and interference filters Focus Control Automatic and manual controls Interface Small computer system interface (SCSI 2) Electrical: Power Supply 90 132 VAC (47 63 Hz) or 180 264 VAC (47 63 Hz) Power Consumption Maximum: 300 W (3A) Standby: 150 W SilverFast AI SilverFast AI puts a new standard for the ease of the service by high quality desktop scanners. SilverFast is Ow a professional scanner and picture treatment software, more than 120 scanners and digital cameras supported under the systems Mac (also OS X, X.2), Windows 95, 98, 2000, and Windows XP. SilverFast combines Ow user friendly Bedienbarkeit with highly efficient professional controls. Beginners and advancers estimate the intelligent controls simply to be used and the possibility to be able to use adjustable regulators any time beside automatic ones also individually. A new dimension in the teamwork with the scan pilot who guarantees a correct work routine gives the predictable results in the colour area to the picture processing and the colour reproduction. The professional user is able to, as usual, all operations in figures give and can exactly observe results and postadjust with an on line densitometer. SilverFast gives Ow to users of all steps of experience tools in the hand with which they can generate quickly brilliant pictures! SilverFast can be used in three different variations: as a natives plug in to Adobe photo shop; as a universal module TWAIN; or as a SilverFast Launcher. Now SilverFast 6 also contains the job manager, a function which was available up to now only as a buyable more option! Now from version 5.5.2 SilverFast Ow and SilverFast HDR allow 16 bit and an entire 48 bit colour corrected issue. |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
| View this article on the vendor's web site. | ||||
