Selling: |

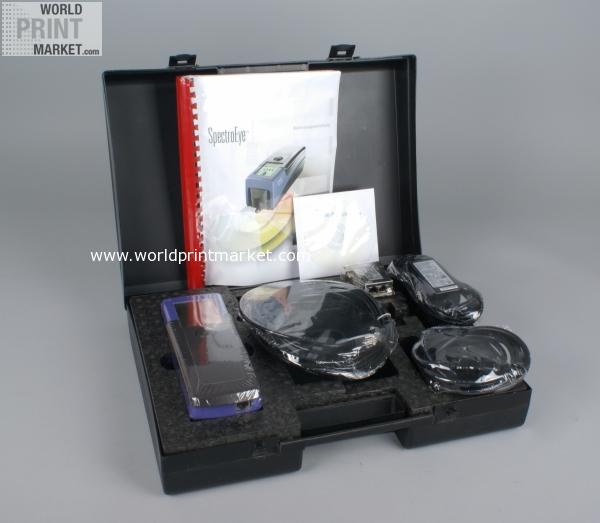

GretagMacbeth (XRrite) SpectroEye XRGA |
|||
|
|
||||
|
|
||||
| ID | 2844 | |||
| Categories | Measuring Devices | | |||
|
|
||||
| Short description | GretagMacbeth (XRrite) SpectroEye XRGA | |||
| Price (in €) | on request | |||
|
|
||||
| Manufacturer | ||||
| Model | --- | |||
| Year of manufacture | 2005 | |||
| Warranty until | --- | |||
|
|
||||

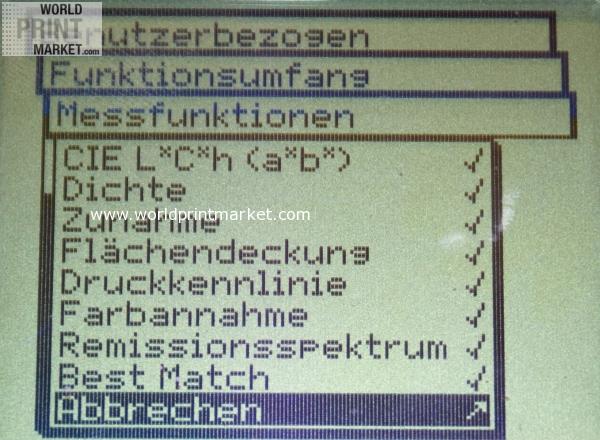

| Long description | Gretag Macbeth (XRrite) SpectroEye XRGA refurbished Type: SpectroEye Part No: 36/64/00 DC input: 15 V / 0.8 A Default functions: Measurement functions: Density Dot Gain Dot Area Impression Line Trapping Remissionsspectrum Best Match Special ΔE Forms: ΔE FMCII ΔE CMC ΔE* 94 ΔE*2000 SpectroEye ® is the worldwide only colour measuring instrument which makes available the rated values for printing after process standard to offset printing (ISO 12647) in the form of spectral data. Best of all match: If is the only function which "speaks" with the printer. They receive immediately a statement about that with which changes of the layer thickness or colour concentration the given authoritative colour is to be reached. With it becomes the arrangement of the pressure machine so simply as never. Spectral process standard data: Thanks to these unique data you can work furthermore with the density values, while the passport / Fail Anzeige refers to the given colour tolerance after process standard offset printing. By these spectral data you can use the «Best of all match» to function also for the setting of the pressure machine after process standard. Automatic Weisskalibration: To receive optimum measuring results, the white reference is inserted in SpectroEye. The calibration is explained auftomatisch without influencing control of the user. Positioning independent of direction: To guarantee a positioning independent of direction of the measuring instrument, is equipped SpectroEye with a ring lighting. This is especially important with measurements on unpainted substrates. High resolution measuring system: With the internal spectral resolution of 3.3 nm grasps SpectroEye also the smallest colour divergences. Order oriented work: In SpectroEye orders can be put on, so that measuring rows can be automatically grasped and be assigned to the respective reference. Besides, orders of the PC can be loaded with the software Color Quality ™ in SpectroEye and from SpectroEye for the other evaluation and documentation in the PC. Access to the digital Pan tone ® to colour fields: All 1114 colours on painted, unpainted and matt paper contain the SpectroEye Pan tone of fields. Furthermore the integration of the colour fields HKS, Toyo and DIC is possible. Certificate to her SpectroEye even with NetProfiler 2: The NetProfiler exists of software and a Kalibrierkarte especially developed for the pressure industry. Via Internet the measured values are compared to the deposited defaults and a correction profile is calculated that can be loaded by the NetProfiler software directly in SpectroEye. Measuring results with NetProfiler 2: exact communication between several devices of the same type if the measuring quality and reliability of the devices receives if the availability of the devices receives longer by the lengthening from service intervals Measuring technology: Spectral measurement holografisches declension grid Spectral range from 380nm to 730nm Measuring value issue 10nm (internal resolution 3.3nm) Measuring mode Remission Measuring geometry 45 °/0 ° ring optics, German Institute for Standardization 5033 Measuring screen Ø 4.5 mm Source of light Wolfram, gas filled, light kind A Physical filtering neutrally, approximated electric light bulb light A polarises approximated daylight D65 especially on inquiry also UV suppression Measuring time without filter: approx. 2see Polarisation filter: approx. 3see D65 filter: approx. 2see Measuring area density to German Institute for Standardization 16536: From 0.00D to 2.5D Linearity ±0,01D Short term ability for reproduction 0.02 deltas E* CIELAB (D50, 2 °), average from 10 measurements in the distance of 10 seconds on white Density ability for reproduction Density German Institute for Standardization 16536 (ability for reproduction ±0,01D): No filter 0.0D 2.5D, Yellow 0.0D 2.0D Pole filter 0.0D 2.2D, Yellow 0.0D 1.8D Measuring head extendably Filter wheel motor powered Absolutweißkalibration automatically on integrated white reference Device examination automatic examination of the spectral Kalibration Thick filter allocation by hand and automatically Average education Mittelung about several measuring values Measuring value allocation manual and automatic allocation of the tests to the references Measuring terms: White relation absolutely, relatively Light kinds of the colour metrics D50, D65, A, C, D30... D300, F1... F12, user defined Normal observers corner 2 °, 10 ° Density norm German Institute for Standardization 16536, German Institute for Standardization 16536 NB, STATUS ANSI A, STATUS ANSI T, ISO status I (SPI), user defined Measuring functions: Colour systems standard: CIE L*a*b *, CIE L*C*h * (a*b *), delta E CIELAB, delta E* 94 optionally: CIE XYZ, CIE xyY, CIE L*u*v *, CIE L*C*h * (u*v *), LABmg, LCHmg, Hunter Lab, RxRyRz Colour distance formulae optionally: Delta E* CIELUV, delta E CMC, delta E FMCII, delta E mg, delta E Hunter Lab, Metamerieindex Densitometrie standard: Density, sound value increase, surface cover, colour acceptance optionally: all thick, pressure identity line, pressure plate, contrast, tone mistake, Verschwärzlichung, autofunction Colour strength optionally: absolutely (K/S) and relatively (DS) White degrees and yellow degrees optionally: White degree CIE, white degree ASTM E313, white degree Berger, white degree Stensby, ISO brightness R457, yellow degree ASTM E313, yellow degree ASTM D1925, tone divergence number CIE Special function Best of all match Colour fields optionally: To PAN TONE Color Formula guide; finder TOYO Color; guide DIC Color; HKS E, K, N and Z Data protection function optionally: Settings protect, multiple user Interfaces: Data socket RJ45 link serial interface RS 232C with from 300 to 57600 Baud Ethernet 10 BaseT, 10 MByte / p. Electricity supply: Electricity supply NiMH accumulator, nom. 7.2 V, 1300mAh Mains appliance specification 85 VAC to 270 VAC, 47 hertz to 63 hertz Loading time approx. 3h, automatic disconnection Loading state automatic control and announcement of the capacity Measurements per load approx. in 3000 Mechanical data: Dimensions length: 24.5 cm, width: 8.3 cm, height: 8 cm Weight approx. 990 g Qualities Ideal measuring instrument for the pressure hall for all colour measurements and thick measurements Quick arrangement of the pressure machine with spectral data for PSO, BMW, ECP Clear representation of the measuring values by highly dissolving display Measurement independent of direction by 45 °/0 ° ring optics (circular lighting) Exact positioning by automatically extendable measuring head Enlargement of the functional extent by free switch code any time possibly Exact communication about Pan tone and HKS* by integrated digital ones Colour fields (* additional option, can be switched at the owners expense freely) With 4.5 mm or 3.2 mm (SATURDAY – Small Aperture) measuring screen available. Devices also with additional UV cut filter available. Technical data Measuring geometry: 45 °/0 ° ring optics (circular lighting) Source of light: gas filled wolfram lamp, light kind A Screen diameter: 4.5 mm or 3.2 mm (not interchangeable) Measuring area: 380 nm 730 nm, reflexion from 0 to 200%, density 0 – 2.5 D Spectral resolution: Inside: 3.3 nm, issue: 10 nm Device divergence: middle ∆Eab <= 0.3 (more than 12 tiles BCRA) Wiederholgenauigkeit: max. ∆Eab = 0.02 (on white ceramics), density 0.01 D Physical filters: No, pole, D65; optionally: UV cut (everybody automatically changeable) Announcement: Graphic display 128 x 256 pixels Storage space: 2000 measuring values all together Interface: serial: RS 232C; USB about adaptor Electricity supply: NiMH (Nickel Metal Hydrid) accumulator |
|||
|
|
||||
| Weight | --- | |||
| Dimensions (LxWxH) | --- | |||
|
|
||||
| Location | Germany | |||
| Region | NRW | |||
|
|
||||
|
|
||||
|
|
||||
